例1：FPW201-V1-A2-F1-P2-O8 按1000W校正
三相三線鐵殼有功功率變送器、輸入100V/5A/50Hz、電源AC 220V、輸出0~±5V/0~±1000W
例2：FPK201-V1-A2-F1-P2-O8 按866var校正
三相三線鐵殼無功功率變送器、輸入100V 5A 50Hz、電源AC 220V、輸出0~±5V/0~±866var。
例3：FPWK201-V1-A2-F1-P2-O8 按866W/866Var 校正
三相三線鐵殼有功功率/無功功率組合式變送器、輸入100V/5A/50Hz、電源AC 220V、輸出0~±5V 0~±866W/0~±5V 866Var。
例4：FPWT201-V1-A2-F1-PD2-O3/O3 按866W校正 雙路輸出
三相三線鐵殼有功功率變送器、輸入100V/5A/50Hz、輸出兩路4~20mA/0~±866W、電源DC220V。
例5：FPKT201-V1-A2-F1-PD2-O3/O3 按866Var校正 雙路輸出
三相三線鐵殼無功功率變送器、輸入AC100V/5A/50Hz、輸出兩路4~20mA/0~±866Var、供電電源DC220V。
型號意義

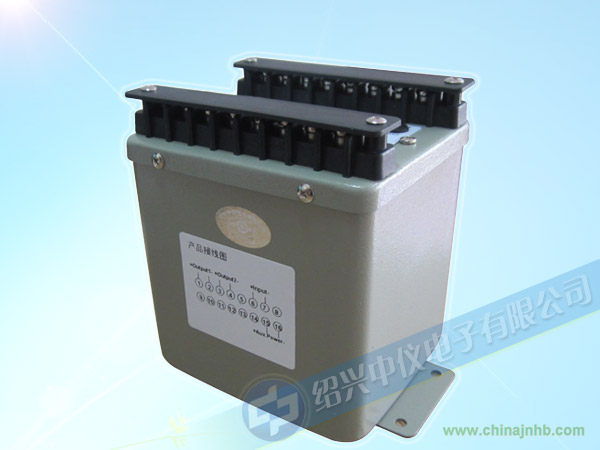

·FPW--鐵殼有功功率變送器
·FPK--鐵殼無功功率變送器
·FPW101--單相兩線鐵殼有功功率變送器
·FPK101--單相兩線鐵殼無功功率變送器
·FPW201--三相三線鐵殼有功功率變送器
·FPK201--三相三線鐵殼無功功率變送器
·FPW301--三相四線鐵殼有功功率變送器
·FPK301--三相四線鐵殼無功功率變送器
·FPWK--鐵殼有功功率/無功功率組合變送器
·FPWKA--鐵殼有功功率/無功功率/電流組合變送器
·FPWT--鐵殼雙路輸出有功功率變送器
·FPKT--鐵殼雙路輸出無功功率變送器
·FPKR--鐵殼正弦無功功率變送器
選購產品是注意僅FPW/FPK可雙路輸出、還應詳細寫明所需要的型號、規格，對所選擇的型號、規格按要求將代號填入，特殊規格及功率校正值用文字注明。
常用型號
·FPW201-V1-A2-F1-P2-O6-±866W(三相三線FPW鐵殼有功功率變送器/輸入100V 5A 50Hz/輸出4~12~20mA/供電電源AC220V/±866W)
·FPW201-V1-A2-F1-PD2-O6-±866W(三相三線FPW鐵殼有功功率變送器/輸入100V 5A 50Hz/輸出4~12~20mA/供電電源DC220V/±866W)
·FPW201-V3-A2-F1-P2-O6-±866W(三相三線FPW鐵殼有功功率變送器/輸入400V 5A 50Hz/輸出4~12~20mA/供電電源AC220V/±866W)
·FPW201-V3-A2-F1-PD2-O6-±866W(三相三線FPW鐵殼有功功率變送器/輸入400V 5A 50Hz/輸出4~12~20mA/供電電源DC220V/±866W)
·FPW301-V1-A2-F1-P2-O6-±866W(三相四線FPW鐵殼有功功率變送器/輸入100V 5A 50Hz/輸出4~12~20mA/供電電源AC220V/±866W)
·FPW301-V1-A2-F1-PD2-O6-±866W(三相四線FPW鐵殼有功功率變送器/輸入100V 5A 50Hz/輸出4~12~20mA/供電電源DC220V/±866W)
·FPW301-V3-A2-F1-P2-O6-±866W(三相四線FPW鐵殼有功功率變送器/輸入400V 5A 50Hz/輸出4~12~20mA/供電電源AC220V/±866W)
·FPW301-V3-A2-F1-PD2-O6-±866W(三相四線FPW鐵殼有功功率變送器/輸入400V 5A 50Hz/輸出4~12~20mA/供電電源DC220V/±866W)
·FPK201-V1-A2-F1-P2-O6-±866Var(三相三線FPK鐵殼無功功率變送器/輸入100V 5A 50Hz/輸出4~12~20mA/供電電源AC220V/±866Var)
·FPK201-V1-A2-F1-PD2-O6-±866Var(三相三線FPK鐵殼無功功率變送器/輸入100V 5A 50Hz/輸出4~12~20mA/供電電源DC220V/±866Var)
·FPK201-V3-A2-F1-P2-O6-±866Var(三相三線FPK鐵殼無功功率變送器/輸入400V 5A 50Hz/輸出4~12~20mA/供電電源AC220V/±866Var)
·FPK201-V3-A2-F1-PD2-O6-±866Var(三相三線FPK鐵殼無功功率變送器/輸入400V 5A 50Hz/輸出4~12~20mA/供電電源DC220V/±866Var)
·FPK301-V1-A2-F1-P2-O6-±866Var(三相四線FPK鐵殼無功功率變送器/輸入100V 5A 50Hz/輸出4~12~20mA/供電電源AC220V/±866Var)
·FPK301-V1-A2-F1-PD2-O6-±866Var(三相四線FPK鐵殼無功功率變送器/輸入100V 5A 50Hz/輸出4~12~20mA/供電電源DC220V/±866Var)
·FPK301-V3-A2-F1-P2-O6-±866Var(三相四線FPK鐵殼無功功率變送器/輸入400V 5A 50Hz/輸出4~12~20mA/供電電源AC220V/±866Var)
·FPK301-V3-A2-F1-PD2-O6-±866Var(三相四線FPK鐵殼無功功率變送器/輸入400V 5A 50Hz/輸出4~12~20mA/供電電源DC220V/±866Var)
·FPWT201-V1-A2-F1-P2-O6/06-±866W(FPWT鐵殼有功功率變送器/三相三線/輸入100V 5A 50Hz/雙輸出4~12~20mA/供電電源AC220V/±866W)
·FPWT201-V1-A2-F1-PD2-O6/06-±866W(FPWT鐵殼有功功率變送器/三相三線/輸入100V 5A 50Hz/雙輸出4~12~20mA/供電電源DC220V/±866W)
·FPWT201-V3-A2-F1-P2-O6/06-±866W(FPWT鐵殼有功功率變送器/三相三線/輸入400V 5A 50Hz/雙輸出4~12~20mA/供電電源AC220V/±866W)
·FPWT201-V3-A2-F1-PD2-O6/06-±866W(FPWT鐵殼有功功率變送器/三相三線/輸入400V 5A 50Hz/雙輸出4~12~20mA/供電電源DC220V/±866W)
·FPWT301-V1-A2-F1-P2-O6/06-±866W(FPWT鐵殼有功功率變送器/三相四線/輸入100V 5A 50Hz/雙輸出4~12~20mA/供電電源AC220V/±866W)
·FPWT301-V1-A2-F1-PD2-O6/06-±866W(FPWT鐵殼有功功率變送器/三相四線/輸入100V 5A 50Hz/雙輸出4~12~20mA/供電電源DC220V/±866W)
·FPWT301-V3-A2-F1-P2-O6/06-±866W(FPWT鐵殼有功功率變送器/三相四線/輸入400V 5A 50Hz/雙輸出4~12~20mA/供電電源AC220V/±866W)
·FPWT301-V3-A2-F1-PD2-O6/06-±866W(FPWT鐵殼有功功率變送器/三相四線/輸入400V 5A 50Hz/雙輸出4~12~20mA/供電電源DC220V/±866W)
·FPKT201-V1-A2-F1-P2-O6/06-±866Var(FPKT鐵殼無功功率變送器/三相三線/輸入100V 5A 50Hz/雙輸出4~12~20mA/供電電源AC220V/±866Var)
·FPKT201-V1-A2-F1-PD2-O6/06-±866Var(FPKT鐵殼無功功率變送器/三相三線/輸入100V 5A 50Hz/雙輸出4~12~20mA/供電電源DC220V/±866Var)
·FPKT201-V3-A2-F1-P2-O6/06-±866Var(FPKT鐵殼無功功率變送器/三相三線/輸入400V 5A 50Hz/雙輸出4~12~20mA/供電電源AC220V/±866Var)
·FPKT201-V3-A2-F1-PD2-O6/06-±866Var(FPKT鐵殼無功功率變送器/三相三線/輸入400V 5A 50Hz/雙輸出4~12~20mA/供電電源DC220V/±866Var)
·FPKT301-V1-A2-F1-P2-O6/06-±866Var(FPKT鐵殼無功功率變送器/三相四線/輸入100V 5A 50Hz/雙輸出4~12~20mA/供電電源AC220V/±866Var)
·FPKT301-V1-A2-F1-PD2-O6/06-±866Var(FPKT鐵殼無功功率變送器/三相四線/輸入100V 5A 50Hz/雙輸出4~12~20mA/供電電源DC220V/±866Var)
·FPKT301-V3-A2-F1-P2-O6/06-±866Var(FPKT鐵殼無功功率變送器/三相四線/輸入400V 5A 50Hz/雙輸出4~12~20mA/供電電源AC220V/±866Var)
·FPKT301-V3-A2-F1-PD2-O6/06-±866Var(FPKT鐵殼無功功率變送器/三相四線/輸入400V 5A 50Hz/雙輸出4~12~20mA/供電電源DC220V/±866Var)
·FPWK201-V1-A2-F1-P2-O6/01-±866W/±866Var(FPWK鐵殼有功無功組合功率變送器/輸入100V 5A 50Hz/輸出4~12~20mA[±866W] 0~±1mA[±866Var]/供電電源AC220V)
·FPWK201-V1-A2-F1-PD2-O6/01-±866W/±866Var(FPWK鐵殼有功無功組合功率變送器/輸入100V 5A 50Hz/輸出4~12~20mA[±866W] 0~±1mA[±866Var]/供電電源DC220V/±866W)
·FPWK201-V3-A2-F1-P2-O6/01-±866W/±866Var(FPWK鐵殼有功無功組合功率變送器/輸入400V 5A 50Hz/輸出4~12~20mA[±866W] 0~±1mA[±866Var]/供電電源AC220V/±866W)
·FPWK201-V3-A2-F1-PD2-O6/01-±866W/±866Var(FPWK鐵殼有功無功組合功率變送器/輸入400V 5A 50Hz/輸出4~12~20mA[±866W] 0~±1mA[±866Var]/供電電源DC220V/±866W)
·FPWK301-V1-A2-F1-P2-O6/01-±866W/±866Var(FPWK鐵殼有功無功組合功率變送器/輸入100V 5A 50Hz/輸出4~12~20mA[±866W] 0~±1mA[±866Var]/供電電源AC220V/±866W)
·FPWK301-V1-A2-F1-PD2-O6/01-±866W/±866Var(FPWK鐵殼有功無功組合功率變送器/輸入100V 5A 50Hz/輸出4~12~20mA[±866W] 0~±1mA[±866Var]/供電電源DC220V/±866W)
·FPWK301-V3-A2-F1-P2-O6/01-±866W/±866Var(FPWK鐵殼有功無功組合功率變送器/輸入400V 5A 50Hz/輸出4~12~20mA[±866W] 0~±1mA[±866Var]/供電電源AC220V/±866W)
·FPWK301-V3-A2-F1-PD2-O6/01-±866W/±866Var(FPWK鐵殼有功無功組合功率變送器/輸入400V 5A 50Hz/輸出4~12~20mA[±866W] 0~±1mA[±866Var]/供電電源DC220V/±866W)
