品牌：RETZ瑞茨/我們一直致力于流體控制和測控領域的持續創新，始于2005……

一勞永逸，事實證明RETZ角座閥工作壽命超過一百萬次 Once and for all, it has been proven that the RETZ angle seat valve has a service life of over one million times

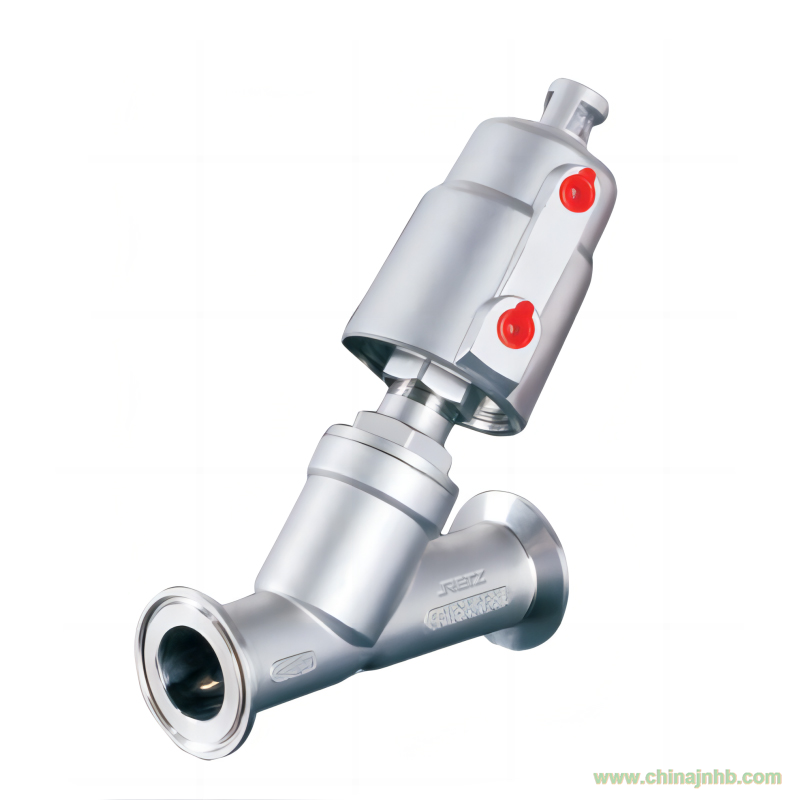

氣動角座閥用于短時間頻繁啟動,反應靈敏，大流量，無噪聲、無水錘,保持高流速,能夠節省空間,它采用氣動執行機構來操作的導向角座閥來實現開關 The pneumatic angle seat valve is used for frequent start-up in a short time, with sensitive response, high flow rate, no noise, no water hammer, maintaining high flow rate, and can save space. It uses a guided angle seat valve operated by a pneumatic actuator to achieve opening and closing

進口卡箍式氣動角座閥工作原理 Working principle

在非工作的狀態時，由于彈簧力作用，閥門常閉（開）

當執行器活塞唄壓縮氣體作用時，閥門打開（關閉）

進口卡箍式氣動角座閥特點Characteristics of pneumatic flange angle seat valve

自動調節雙層填料密封蓋Self-adjusting,double packing glands.

加長防錘形導向和防塵密封圈Extended spindle guideand wiper seal.

易安裝，汽控接口可在360°上任意選定位置Easy to install Motor control interface on the 360°Random designation position

無水擊作用(流向閥座下)Water hammer-free(Flow below seat)

比截止閥高50%的流速 50% higher flow ratesthan the Global valves

配有長壽活塞環的免修執行器 Maintenance-free actuatorWith long-life piston ring

開啟時無振動，比普通閥減少40%的用氣量 Shock free opening With 40% less alr consumption

進口卡箍式氣動角座閥參數

閥體材質：304/316

氣缸材質：PAC（聚酰胺）、304

閥芯密封：PTFE、FKM

閥門的工作壓力應位于 0~16/25Bar ，（蒸汽介質在 180℃C時，工作壓力為0~10 Bar)

介質溫度∶ -10℃ ~180℃

介質粘度∶≤600cst（mm2/s）

典型應用--

食品和飲料流水線 Food and beverage

可控介質比如：空氣，水，高達180℃蒸汽，堿性溶液和真空Processing industries control of mediumssuch as air, water, steam up to 180℃, lye,vacuum

紡織印染和漂白 Textile dyeing and bleaching

可控水，高達180℃的蒸汽，蘇打液 Control of water, steam up to 180℃Corium hypochlorite

醫院和制藥工業消毒高壓滅菌器Sterilizers and auto-claves for hospitals and the pharmaceutical industry

可控蒸汽高達180℃的水 Control of steam,hot water up to 180℃

洗衣 Laundries

可控水，蒸汽，洗滌劑 Control of water, steam, washing agents

工業洗滌設備和溶解設備 Control of solvents, steam, vacuum

可控溶劑，蒸汽和真空 Industrial washing equipmentand solvent recovery systems

機械制造 Machine tools
